x86 Panel PCs · Part no.
IPC2X185D

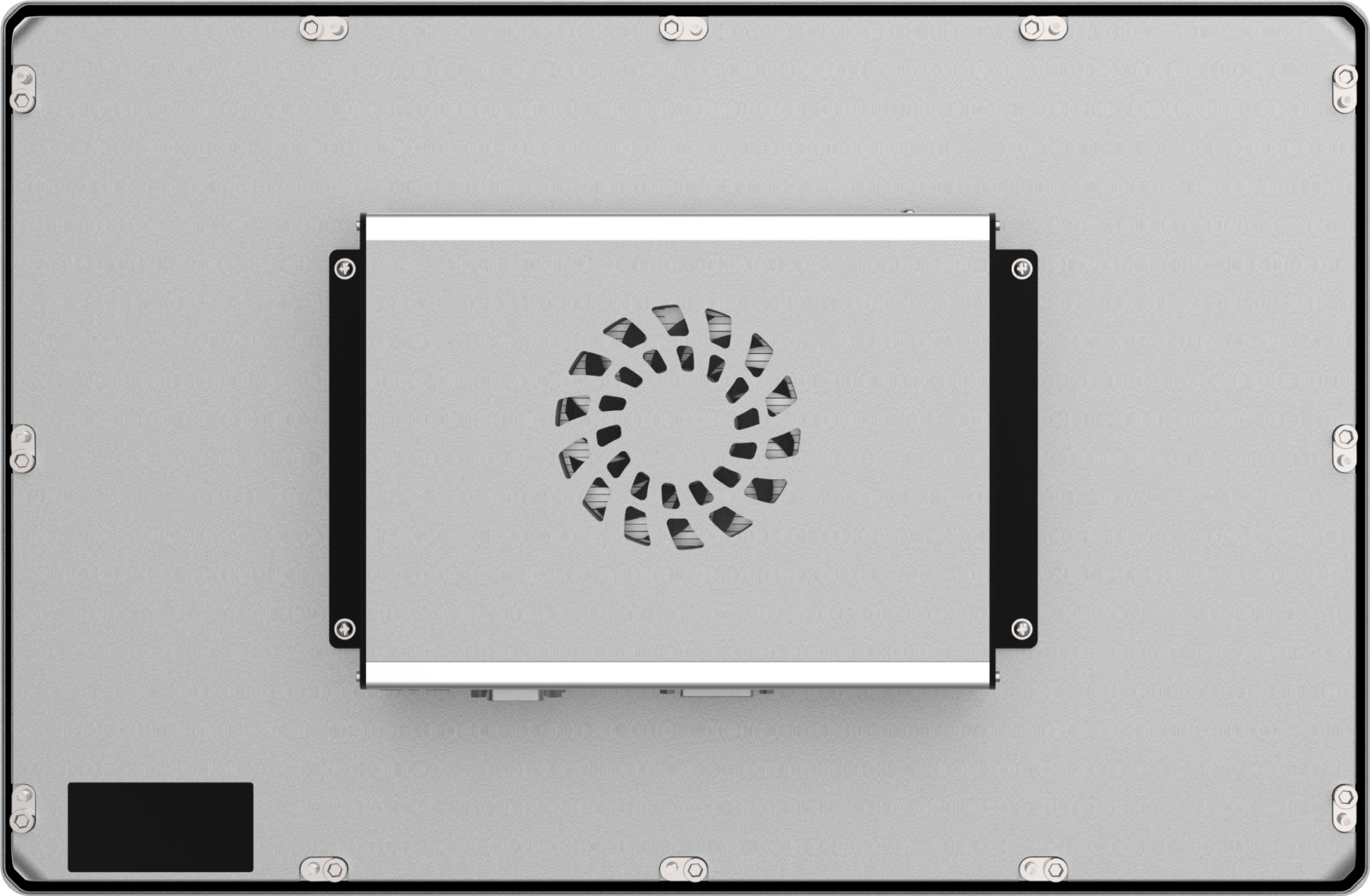

IPC2X185D — 18.5″ Industrial Panel PC (D Series)
18.5″ Industrial Panel PC (D Series) with an IP65 front bezel.
The IPC2X185D is a 18.5″ Industrial Panel PC (D Series). It is available with single-point resistive or 10-point capacitive front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a 0 to 70 °C operating range. Power input is 12–24 V DC, drawing 30 W. Mounting options are embedded, desktop. Processor options cover the Intel Celeron J6412 and Intel Core i3/i5/i7 families.
In production
Technical specifications
14 specs
| Product | |
|---|---|
| Product family | IPC2X |
| Display | |
| Display Size | 18.5inches |
| Panel Type | TFT LCD |
| Capacitive touch | Yes |
| Resistive touch | Yes |
| Processing | |
| CPU | Intel Celeron J6412 / Intel Core i3-i7 |
| Memory | 4GB |
| Power | |
|---|---|
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 24V DC |
| Environmental | |
| Operating Temperature (min) | 0°C |
| Operating Temperature (max) | 70°C |
| Ingress Protection | IP65 |
| Mechanical | |
| Panel mount | Yes |
| Desktop stand | Yes |
Across the series
8 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | IPC2X150D | IPC2X156D | IPC2X170D | This modelIPC2X185D | IPC2X190D | IPC2X215D |
|---|---|---|---|---|---|---|
| DisplayDisplay Size | 15inches | 15.6inches | 17inches | 18.5inches | 19inches | 21.5inches |
| Resolution | 1024 × 768 | — | 1280 × 1024 | — | 1280 × 1024 | — |
| Panel Type | TFT LCD | TFT LCD | TFT LCD | TFT LCD | TFT LCD | — |
| ProcessingMemory | 4GB | 4GB | 4GB | 4GB | 4GB | — |
| Storage | 8GB | 8GB | 128GB | — | 128GB | — |
| EnvironmentalOperating Temperature (min) | -10°C | — | 0°C | 0°C | 0°C | 0°C |
| Operating Temperature (max) | 65°C | — | 50°C | 70°C | 50°C | 60°C |
| MechanicalPanel mount | Yes | Yes | — | Yes | — | — |
