CE · RoHS · ISO 9001
Arm-Mounted Panel PCs · Part no.
IPC5X215

IPC5X215 — 21.5″ Arm-Mounted Panel PC

21.5″ 1920 × 1080 Arm-Mounted Panel PC with an IP65 front bezel.

The IPC5X215 is a 21.5″ Arm-Mounted Panel PC with a 1920 × 1080 TFT LCD panel. It is available with single-point resistive, 10-point capacitive or non-touch front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a 0 to 50 °C operating range. Power input is 9–36 V DC, drawing 5 W. Processor options cover the Intel Celeron J6412 and Intel Core i3/i5/i7 families.
Request a quote Datasheet (PDF) (opens in a new tab)

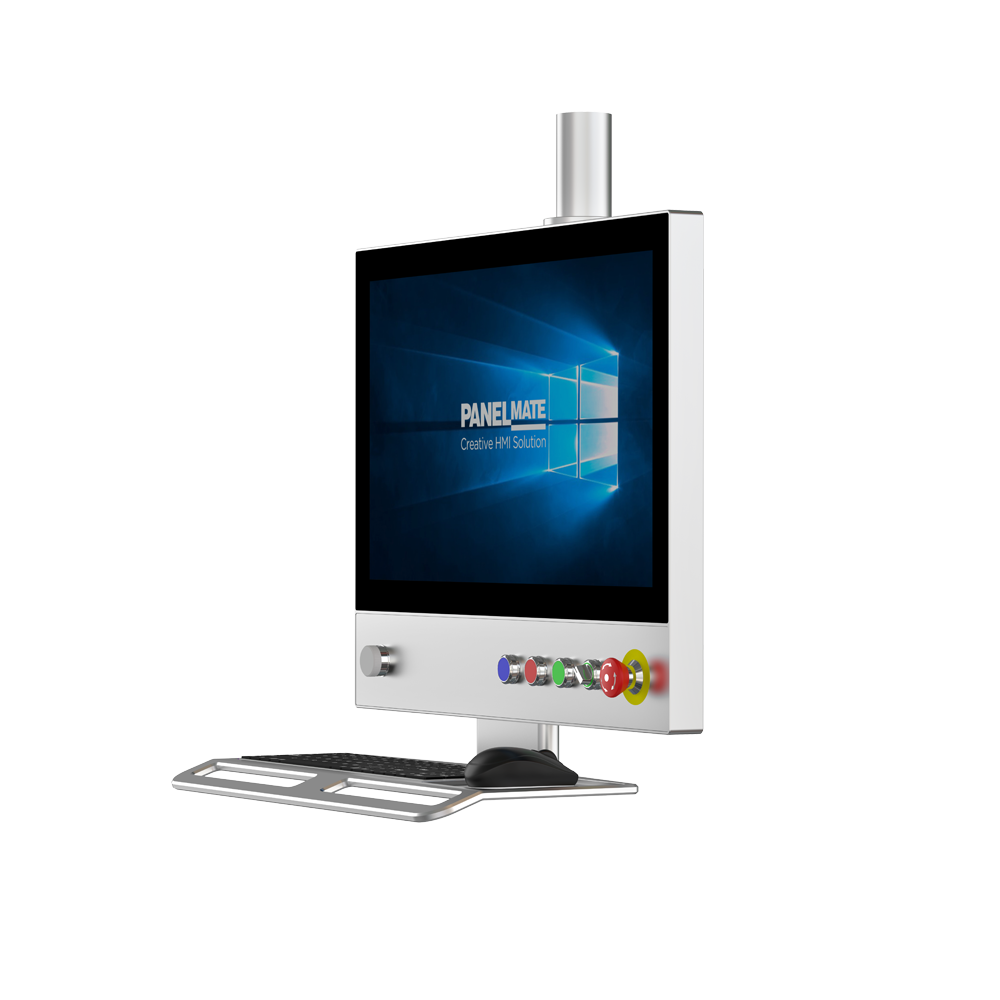

IPC5X215 product photo
In production

Technical specifications

14 specs
Technical specifications
Product
Product familyIPC5X
Display
Display Size21.5inches
Resolution1920 × 1080
Panel TypeTFT LCD
Capacitive touchYes
Resistive touchYes
Non-touch optionYes
Technical specifications
Processing
CPUIntel Celeron J6412 / Intel Core i3-i7
Memory8GB
Power
Input Voltage (min)9V DC
Input Voltage (max)36V DC
Environmental
Operating Temperature (min)0°C
Operating Temperature (max)50°C
Ingress ProtectionIP65

Across the series

4 differences

Only the specifications that differ across this product line. Everything the models share is on the full specification table above.

Across the series
SpecificationIPC5X150IPC5X156IPC5X185IPC5X190This modelIPC5X215
DisplayDisplay Size15inches15.6inches18.5inches19inches21.5inches
Resolution1024 × 7681366 × 7681366 × 7681280 × 10241920 × 1080
EnvironmentalOperating Temperature (min)-10°C0°C0°C0°C0°C
Operating Temperature (max)65°C60°C50°C50°C50°C
