ARM / Android Panel PCs · Part no.
IAM2X101

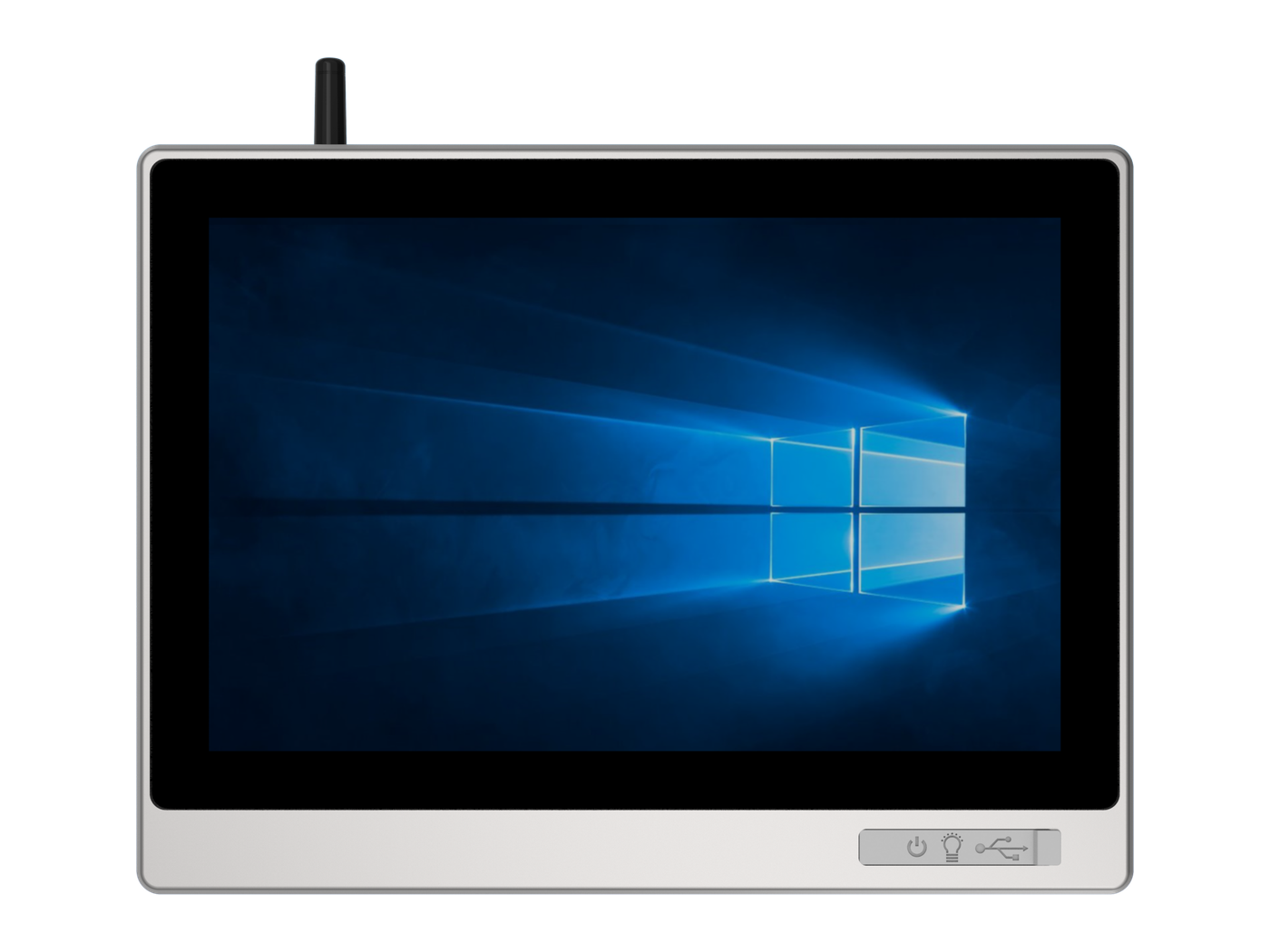

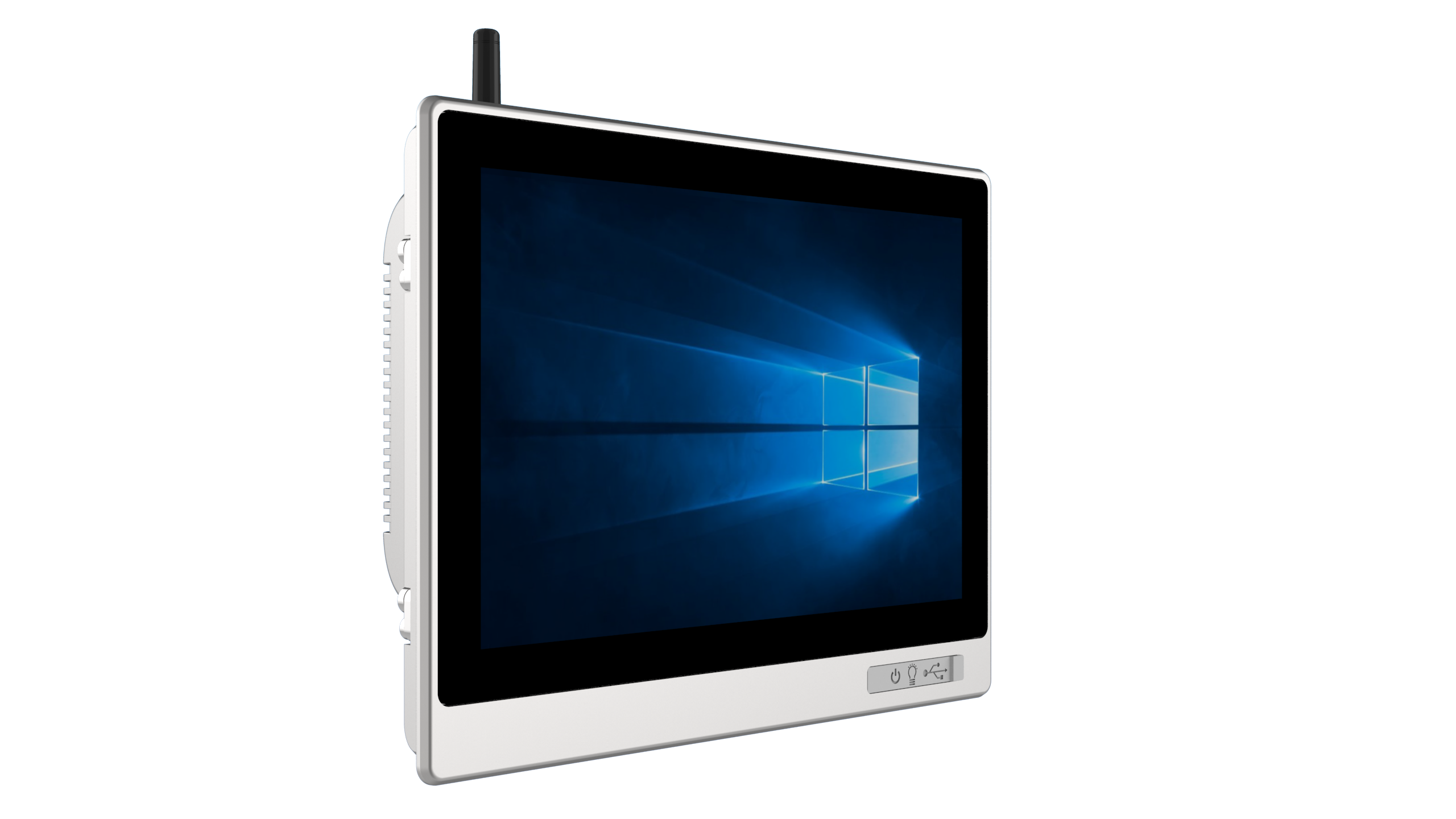

IAM2X101 — 10.1″ ARM Panel PC
10.1″ 1280 × 800 ARM Panel PC with an IP65 front bezel.
The IAM2X101 is a 10.1″ ARM Panel PC with a 1280 × 800 TFT LCD panel. It is available with single-point resistive or 10-point capacitive front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a -20 to 70 °C operating range. Power input is 12–24 V DC. Mounting options are embedded, wall-mounted, VESA. It runs on a Rockchip RK3568 ARM processor.
In production
Technical specifications
16 specs
| Product | |
|---|---|
| Product family | IAM2X |
| Display | |
| Display Size | 10.1inches |
| Resolution | 1280 × 800 |
| Panel Type | TFT LCD |
| Capacitive touch | Yes |
| Resistive touch | Yes |
| Processing | |
| CPU | Rockchip RK3568 |
| Memory | 2GB |
| Power | |
|---|---|
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 24V DC |
| Environmental | |
| Operating Temperature (min) | -20°C |
| Operating Temperature (max) | 70°C |
| Ingress Protection | IP65 |
| Mechanical | |
| Panel mount | Yes |
| Wall mount | Yes |
| VESA mount | Yes |
Across the series
6 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | This modelIAM2X101 | IAM2X104 | IAM2X116 | IAM2X121 | IAM2X122 | IAM2X150 |
|---|---|---|---|---|---|---|
| DisplayDisplay Size | 10.1inches | 10.4inches | 11.6inches | 12.1inches | 12.2inches | 15inches |
| Resolution | 1280 × 800 | 1024 × 768 | 1920 × 1080 | 1024 × 768 | 1280 × 800 | 1024 × 768 |
| EnvironmentalOperating Temperature (min) | -20°C | -30°C | 0°C | -20°C | -20°C | -10°C |
| Operating Temperature (max) | 70°C | 80°C | 50°C | 70°C | 70°C | 65°C |
| MechanicalPanel mount | Yes | — | Yes | Yes | Yes | Yes |
| Wall mount | Yes | Yes | Yes | — | — | — |
