x86 Panel PCs · Part no.
IPC2X190

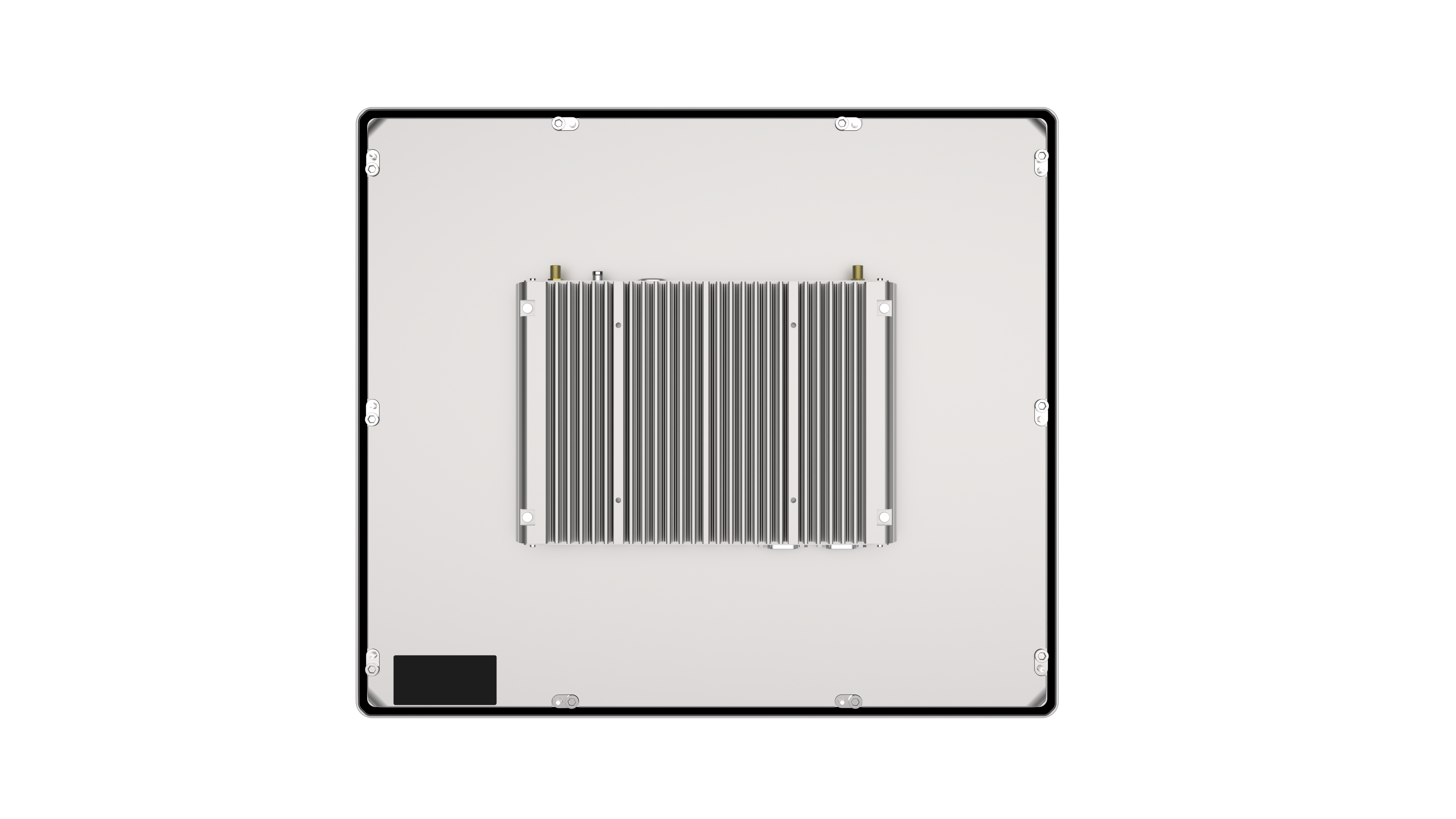

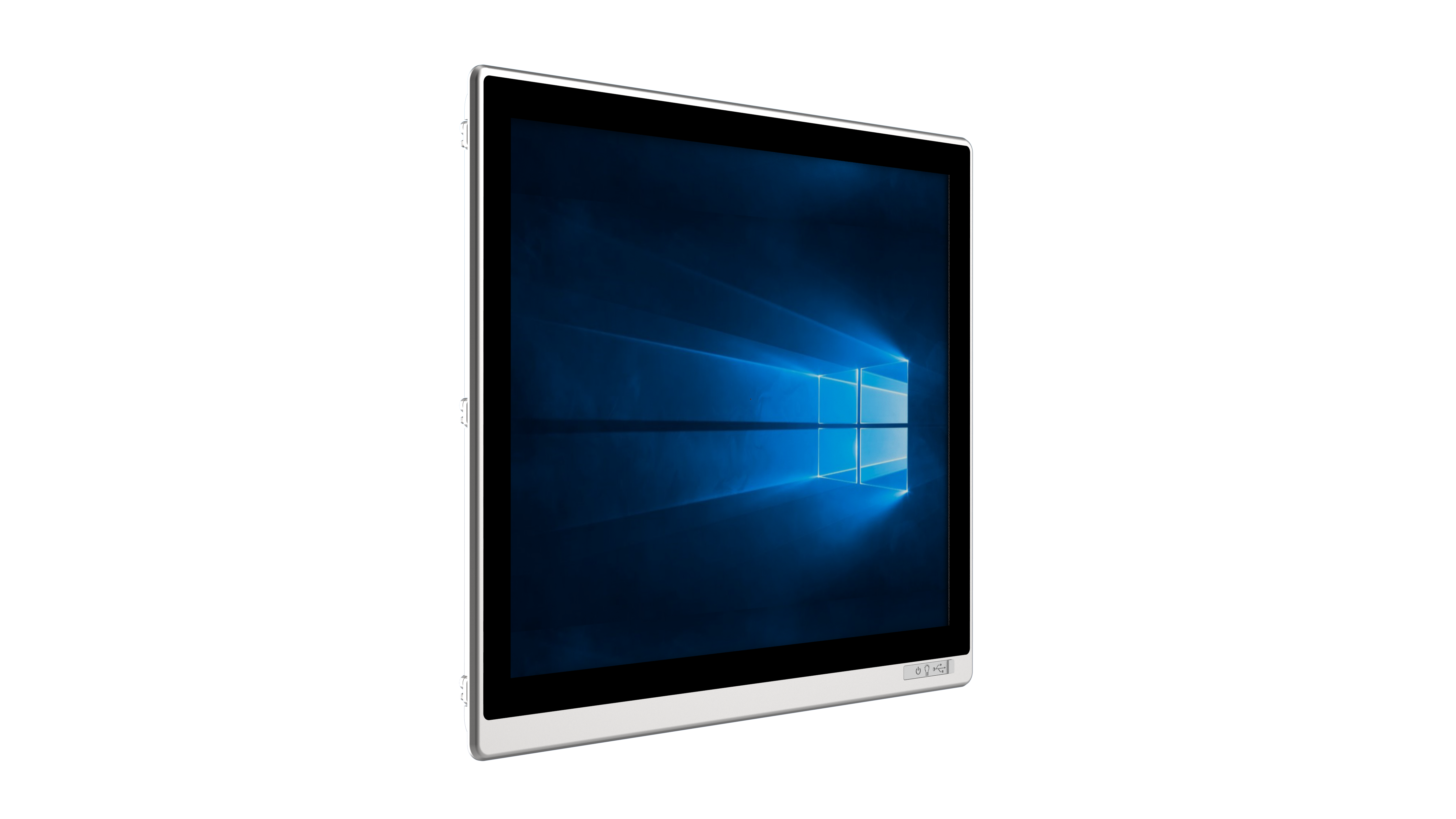

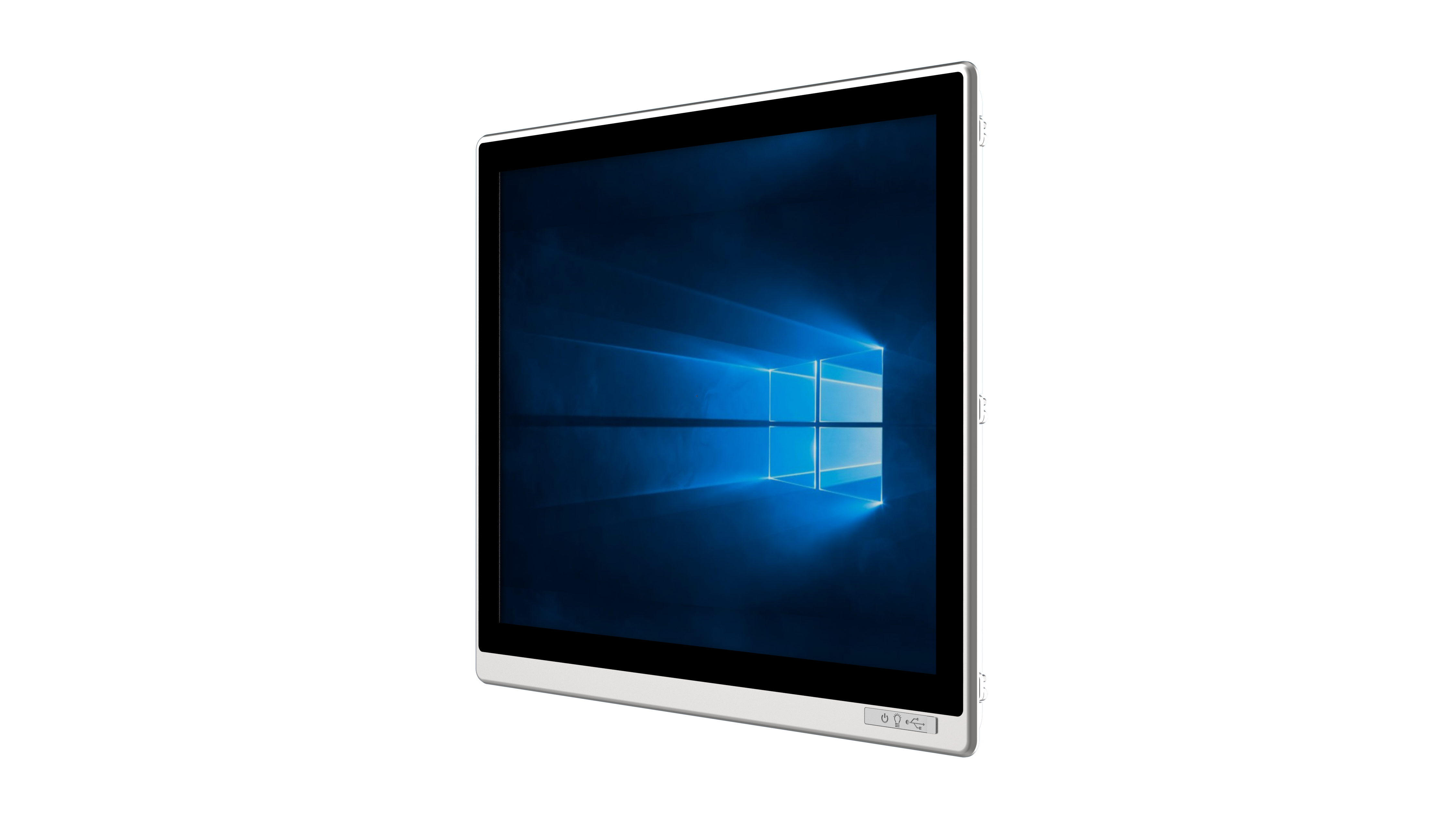

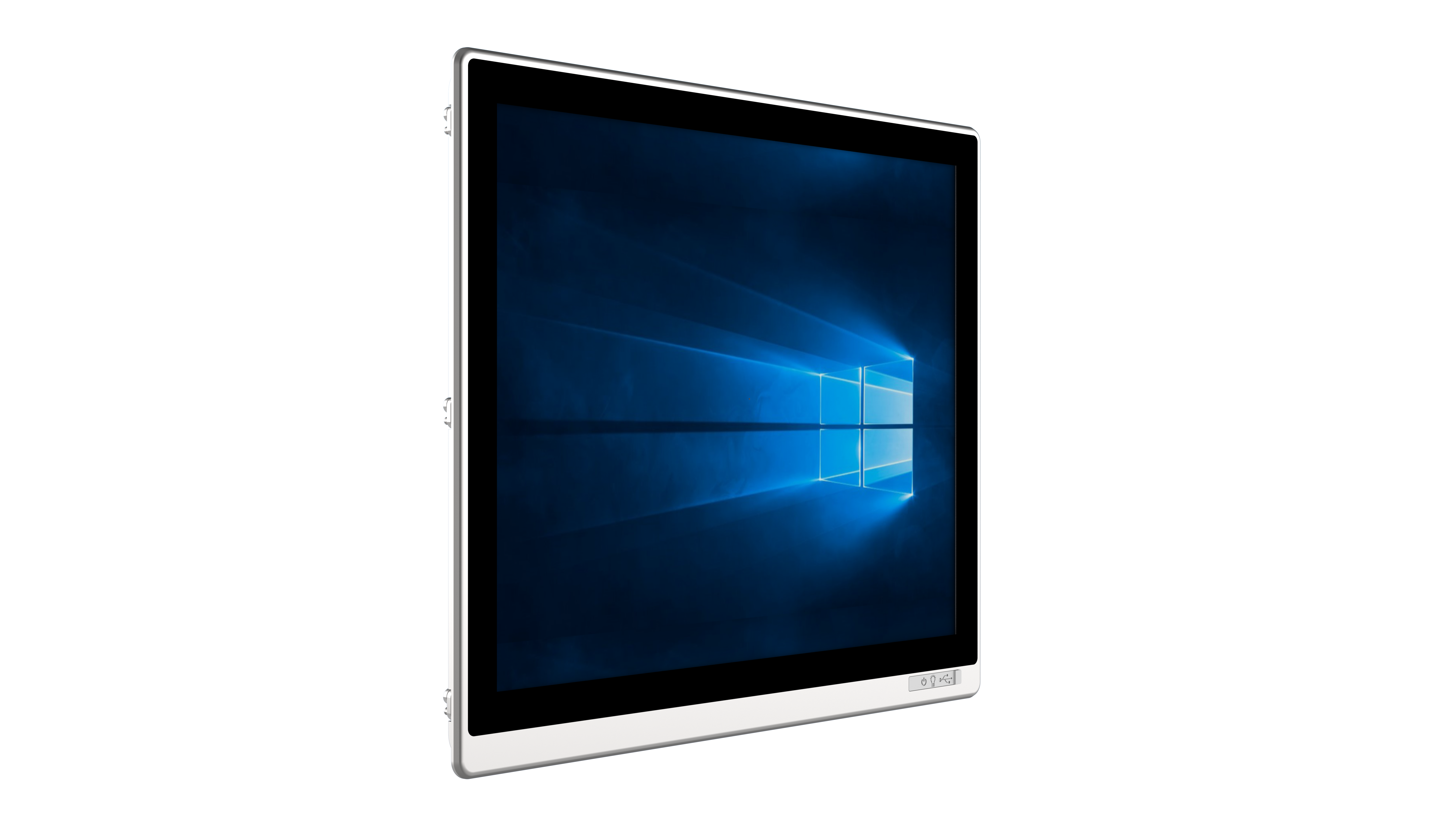

IPC2X190 — 19.0″ Industrial Panel PC
19.0″ 1280 × 1024 industrial panel pc with an IP65 front bezel.
The IPC2X190 is a 19.0″ industrial panel pc with a 1280 × 1024 TFT LCD panel. It is available with single-point resistive, 10-point capacitive or non-touch front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a -20 to 60 °C operating range. Power input is 12–36 V DC, drawing 30 W. Mounting options are wall-mounted, VESA. Processor options cover the Intel Celeron J6412 and Intel Core i3/i5/i7 families.
In production
Technical specifications
15 specs
| Product | |
|---|---|
| Product family | IPC2X |
| Display | |
| Display Size | 19inches |
| Resolution | 1280 × 1024 |
| Panel Type | TFT LCD |
| Capacitive touch | Yes |
| Resistive touch | Yes |
| Non-touch option | Yes |
| Processing | |
| CPU | Intel Celeron J6412 / Intel Core i3-i7 |
| Power | |
|---|---|
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 36V DC |
| Environmental | |
| Operating Temperature (min) | -20°C |
| Operating Temperature (max) | 60°C |
| Ingress Protection | IP65 |
| Mechanical | |
| Wall mount | Yes |
| VESA mount | Yes |
Across the series
13 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | IPC2X170 | IPC2X173 | IPC2X185 | This modelIPC2X190 | IPC2X121D | IPC2X122D |
|---|---|---|---|---|---|---|
| DisplayDisplay Size | 17inches | 17.3inches | 18.5inches | 19inches | 12.1inches | 12.2inches |
| Resolution | 1280 × 1024 | 1920 × 1080 | 1366 × 768 | 1280 × 1024 | 1024 × 768 | — |
| Panel Type | TFT LCD | — | TFT LCD | TFT LCD | TFT LCD | — |
| Non-touch option | Yes | Yes | Yes | Yes | — | — |
| ProcessingMemory | — | — | — | — | 4GB | — |
| Storage | — | — | — | — | 128GB | — |
| PowerInput Voltage (max) | 36V DC | 36V DC | 36V DC | 36V DC | 24V DC | 24V DC |
| EnvironmentalOperating Temperature (min) | -20°C | 0°C | 0°C | -20°C | -20°C | 0°C |
| Operating Temperature (max) | 60°C | 50°C | 50°C | 60°C | 70°C | 70°C |
| MechanicalPanel mount | — | Yes | — | — | Yes | — |
| Wall mount | Yes | — | Yes | Yes | — | — |
| VESA mount | Yes | — | Yes | Yes | — | — |
| Desktop stand | — | — | — | — | Yes | — |
