x86 Panel PCs · Part no.
IPC2X121D

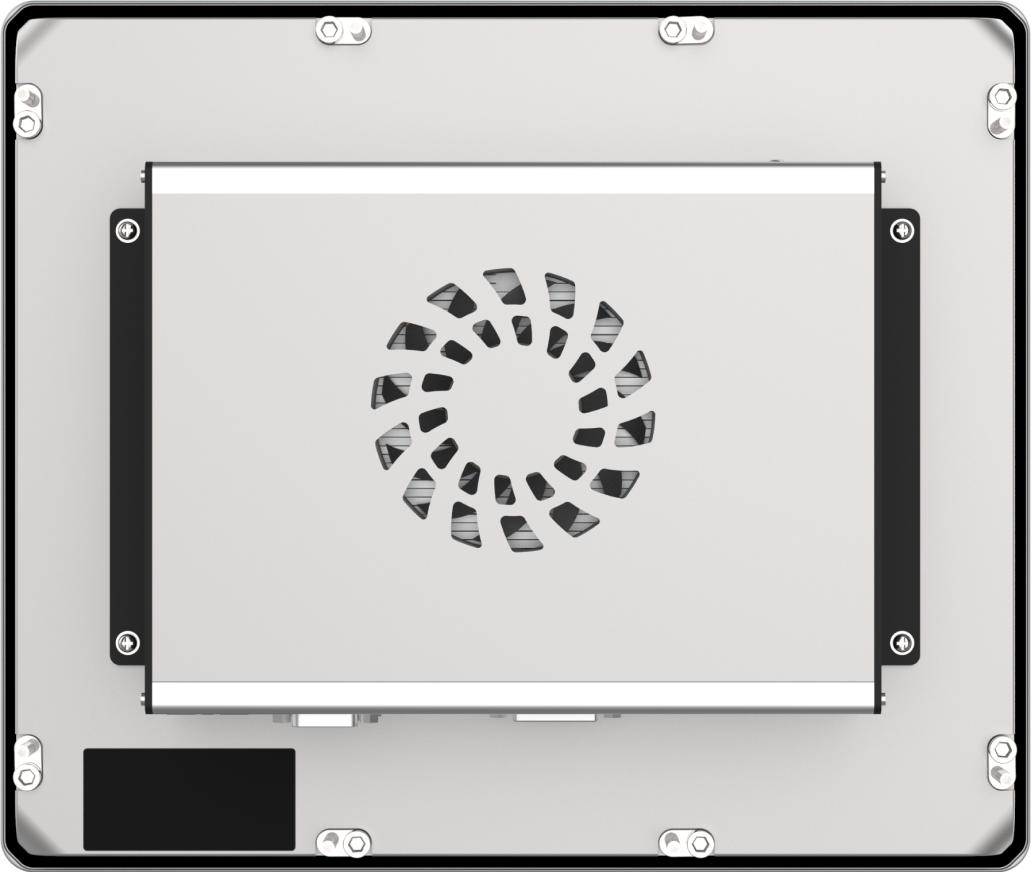

IPC2X121D — 12.1″ Industrial Panel PC (D Series)
12.1″ 1024 × 768 Industrial Panel PC (D Series) with an IP65 front bezel.
The IPC2X121D is a 12.1″ Industrial Panel PC (D Series) with a 1024 × 768 TFT LCD panel. It is available with single-point resistive or 10-point capacitive front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a -20 to 70 °C operating range. Power input is 12–24 V DC, drawing 125 W. Mounting options are embedded, desktop. Processor options cover the Intel Celeron J6412 and Intel Core i3/i5/i7 families.
In production
Technical specifications
16 specs
| Product | |
|---|---|
| Product family | IPC2X |
| Display | |
| Display Size | 12.1inches |
| Resolution | 1024 × 768 |
| Panel Type | TFT LCD |
| Capacitive touch | Yes |
| Resistive touch | Yes |
| Processing | |
| CPU | Intel Celeron J6412 / Intel Core i3-i7 |
| Memory | 4GB |
| Storage | 128GB |
| Power | |
|---|---|
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 24V DC |
| Environmental | |
| Operating Temperature (min) | -20°C |
| Operating Temperature (max) | 70°C |
| Ingress Protection | IP65 |
| Mechanical | |
| Panel mount | Yes |
| Desktop stand | Yes |
Across the series
13 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | IPC2X173 | IPC2X185 | IPC2X190 | This modelIPC2X121D | IPC2X122D | IPC2X150D |
|---|---|---|---|---|---|---|
| DisplayDisplay Size | 17.3inches | 18.5inches | 19inches | 12.1inches | 12.2inches | 15inches |
| Resolution | 1920 × 1080 | 1366 × 768 | 1280 × 1024 | 1024 × 768 | — | 1024 × 768 |
| Panel Type | — | TFT LCD | TFT LCD | TFT LCD | — | TFT LCD |
| Non-touch option | Yes | Yes | Yes | — | — | — |
| ProcessingMemory | — | — | — | 4GB | — | 4GB |
| Storage | — | — | — | 128GB | — | 8GB |
| PowerInput Voltage (max) | 36V DC | 36V DC | 36V DC | 24V DC | 24V DC | 24V DC |
| EnvironmentalOperating Temperature (min) | 0°C | 0°C | -20°C | -20°C | 0°C | -10°C |
| Operating Temperature (max) | 50°C | 50°C | 60°C | 70°C | 70°C | 65°C |
| MechanicalPanel mount | Yes | — | — | Yes | — | Yes |
| Wall mount | — | Yes | Yes | — | — | — |
| VESA mount | — | Yes | Yes | — | — | — |
| Desktop stand | — | — | — | Yes | — | Yes |
