x86 Panel PCs · Part no.
IPC2X270D

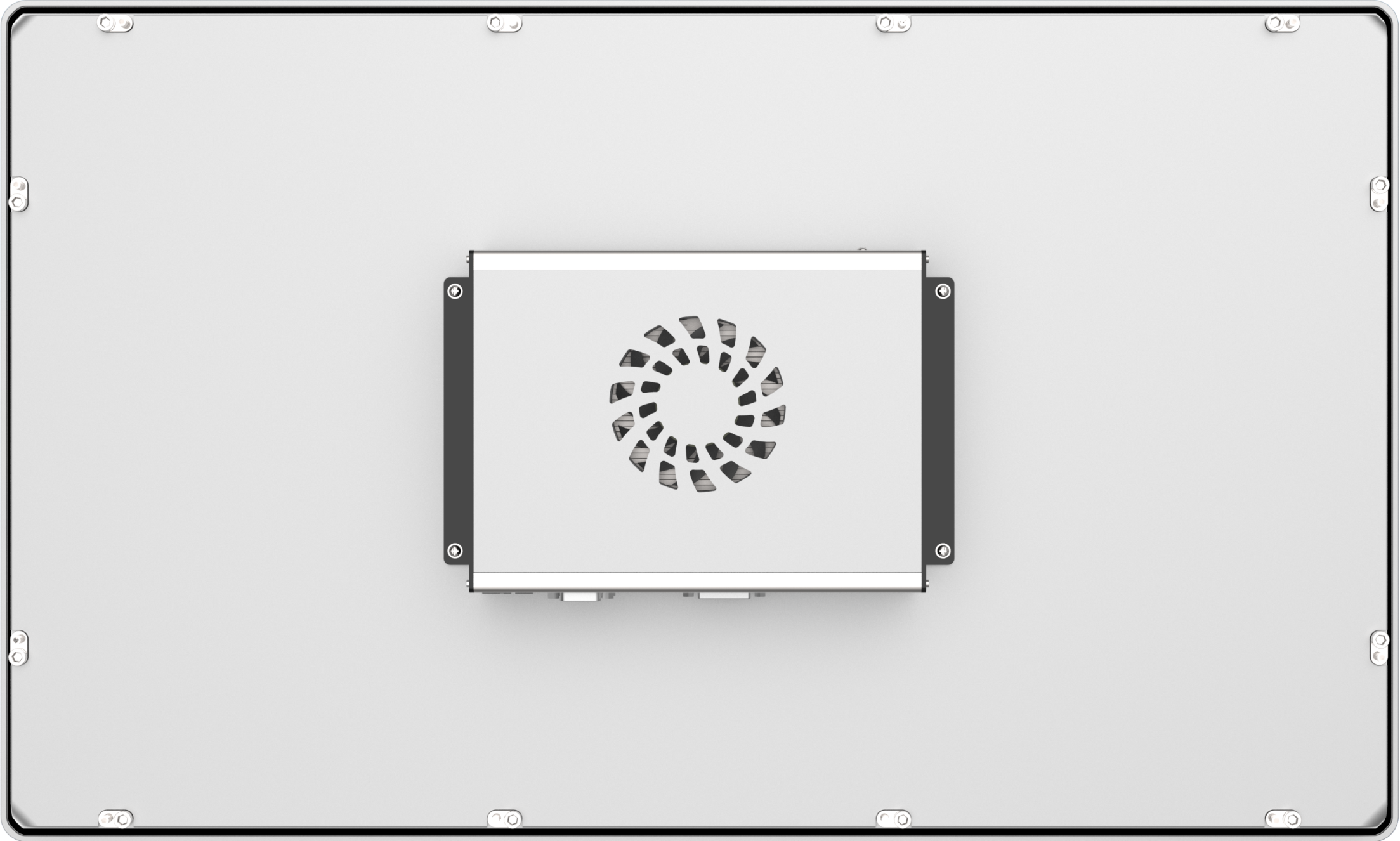

IPC2X270D — 27.0″ Industrial Panel PC (D Series)
27.0″ Industrial Panel PC (D Series) with an IP65 front bezel.
The IPC2X270D is a 27.0″ Industrial Panel PC (D Series). It is available with single-point resistive or 10-point capacitive front options. It has an IP65 front bezel and an aluminium-magnesium alloy housing. Power input is 12–24 V DC. Mounting options are desktop. Processor options cover the Intel Celeron J6412 and Intel Core i3/i5/i7 families.
In production
Technical specifications
9 specs
| Product | |
|---|---|
| Product family | IPC2X |
| Display | |
| Display Size | 27inches |
| Capacitive touch | Yes |
| Resistive touch | Yes |
| Processing | |
| CPU | Intel Celeron J6412 / Intel Core i3-i7 |
| Power | |
|---|---|
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 24V DC |
| Environmental | |
| Ingress Protection | IP65 |
| Mechanical | |
| Desktop stand | Yes |
Across the series
15 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | IPC2X170D | IPC2X185D | IPC2X190D | IPC2X215D | IPC2X240D | This modelIPC2X270D |
|---|---|---|---|---|---|---|
| DisplayDisplay Size | 17inches | 18.5inches | 19inches | 21.5inches | 24inches | 27inches |
| Resolution | 1280 × 1024 | — | 1280 × 1024 | — | — | — |
| Panel Type | TFT LCD | TFT LCD | TFT LCD | — | — | — |
| Capacitive touch | Yes | Yes | Yes | Yes | — | Yes |
| Resistive touch | Yes | Yes | Yes | Yes | — | Yes |
| ProcessingCPU | Intel Celeron J6412 / Intel Core i3-i7 | Intel Celeron J6412 / Intel Core i3-i7 | Intel Celeron J6412 / Intel Core i3-i7 | Intel Celeron J6412 / Intel Core i3-i7 | — | Intel Celeron J6412 / Intel Core i3-i7 |
| Memory | 4GB | 4GB | 4GB | — | — | — |
| Storage | 128GB | — | 128GB | — | — | — |
| PowerInput Voltage (min) | 12V DC | 12V DC | 12V DC | 12V DC | — | 12V DC |
| Input Voltage (max) | 24V DC | 24V DC | 24V DC | 24V DC | — | 24V DC |
| EnvironmentalOperating Temperature (min) | 0°C | 0°C | 0°C | 0°C | — | — |
| Operating Temperature (max) | 50°C | 70°C | 50°C | 60°C | — | — |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 | — | IP65 |
| MechanicalPanel mount | — | Yes | — | — | — | — |
| Desktop stand | Yes | Yes | Yes | Yes | — | Yes |
